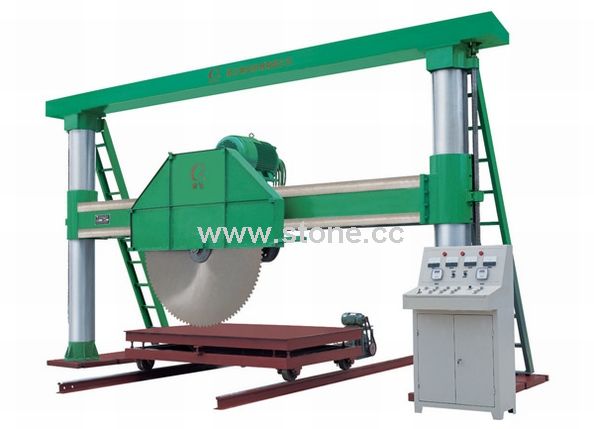

Cylindrical Automatic Disc Stone Cutter

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1277283

• Place of Origin:

  China
• Major Technical Parameters
  Max. Range of Raw Stone Block 3000mmx1500mmx1500mm
  Blade Diameter 1600mm -2200mm
  Minimum Cutting Thickness of Slates: 10mm
  Main Motor Power: 22kw (can be equiped with 30kw)
  Gross Power: 29.5kw (can be equiped with 37.5kw)
  Exhausted Water: 12m³/h
  Gross Weight: 6.5T

  Structure and Features:
  This machine is of girder rise and fall type structure, and imported frequency converter is used to conduct stepless speed adjustment. Its main spindle box moves right and left along the V type guide rail on the crossbeam. The cutting table can rotate in 360 degree. With electromechanical integrated design, this machine is reasonable in structure, high in rigidity, stable in performance. It can process a variety of stone slates with excellent quality. It's an ideal set of equipment for processing large granite and marble plates and special-shaped slates.
