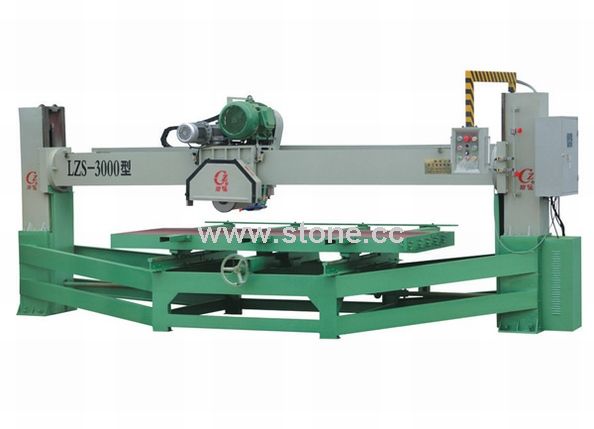

Portal Edge Cutter

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1277576

• Place of Origin:

  China
• Major Technical Parameters
  Profile Size: 5200mmx2400mmx1500mm
  Specification of the Workbench: 3000mm x900mm
  Processing Size: 3000mmx1600mm
  Diameter of Saw: 350mm500mm
  Main Motor Power: 11kw
  Motor Power of the Saw Blade Going to and for: 1.5kw
  Power of the Motor Going up and down: 0.75kw
  Gross Power: 13.25kw
  Exhausted Water: 2m³/h
  Gross Weight: 2880kg

  Structure and Features
  The machine was designed, created first by adjusted through frequency invertion, adopting double V shape flute oil-dipped track. The speed of the motor can be adjusted through the frequency converter. This machine is fit for the factory best who processes large quantities of slabs. This machine features exact slate cutting, the functions of the whole machine are stable and high automation. When cutting is finished, the saw blade will ascends automatically, leaves the slab surface and returns to the original position quickly and automatically, then descends again for another cutting automatically. The workbench can go forward and backward, and the head can be adjusted to different angles.
